Incoming Inspection

Electronic part-specific inspection workflows at the receiving dock

For inventory that requires inspection before use in operations, set up a customized electronic form that must be completed and signed before the material quality status is changed from the default status to Released.

Create an Inspection Template

Inspection templates are a powerful way to control inspections across multiple parts. When a template is updated, all parts that use that template are automatically updated with the changes (if they are set to "Use Template" and not "Copy from Template". See Add Inspection Configuration section for additional information)

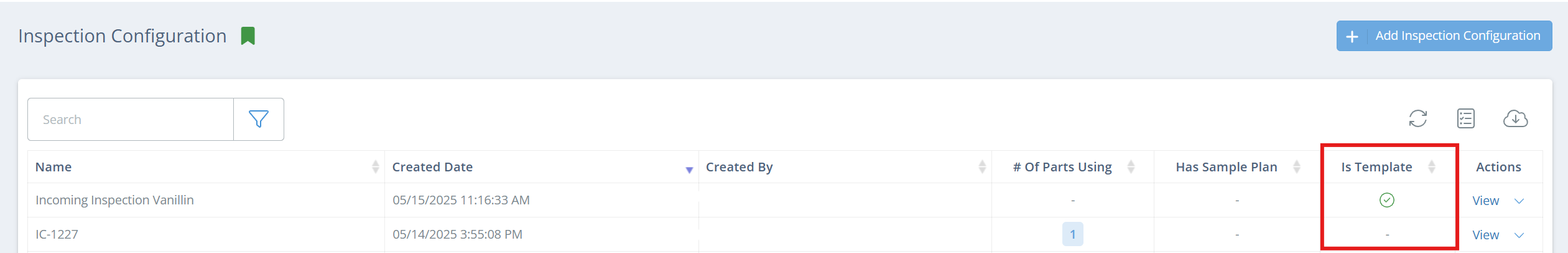

To create an inspection template from scratch, click on the gear icon in the top right corner of the page, open "All Lists", then click on "Inspection Configuration". You may see some inspections listed there already if you have parts with configured inspections.

To create a new inspection configuration, just click on "Add Inspection Configuration" in the top right and fill out the inspection information. Once the configuration is saved, it should show a checkmark in the "Is Template" column on the Inspection Configuration page, marking it as available to be used on multiple parts.

Convert Existing Inspection to Template

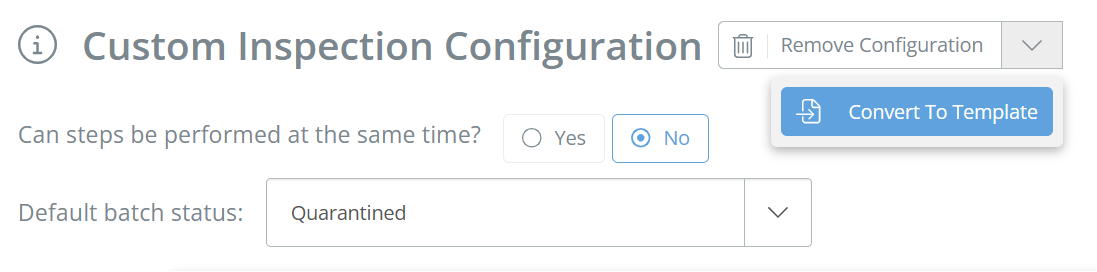

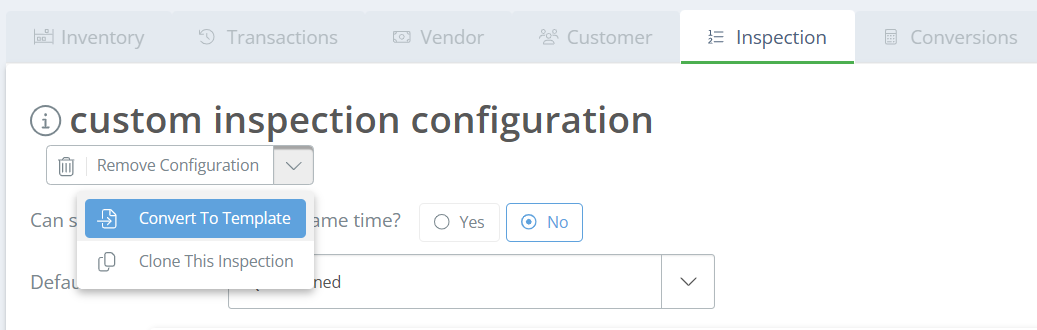

If you already have an inspection configuration set up and you want it to be available to other parts as a template, click the dropdown arrow next to "Remove Configuration" and select "Convert to Template".

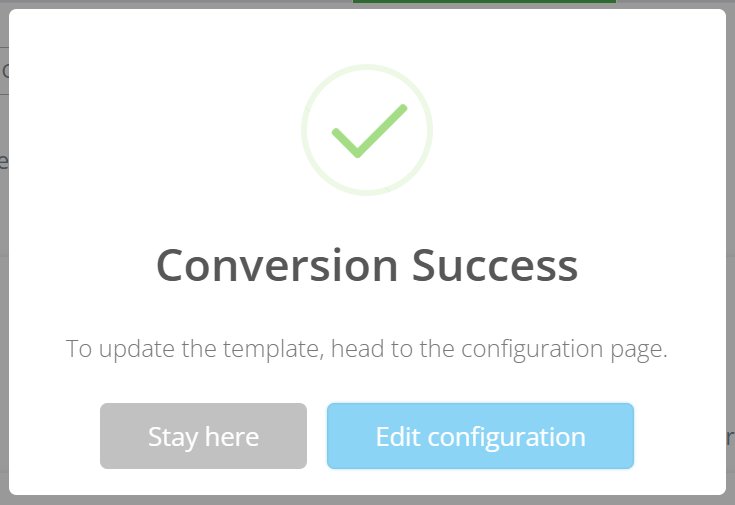

Once you name the template and save, it will be available on the Inspection Configuration page.

View All Parts Using a Template

To see a list of parts that are using a specific inspection template, go to the Inspections Configurations page (gear icon, All Lists, Inspection Configurations) and open the relevant template. You will see 3 tabs: Configuration, Inspections, and Parts.

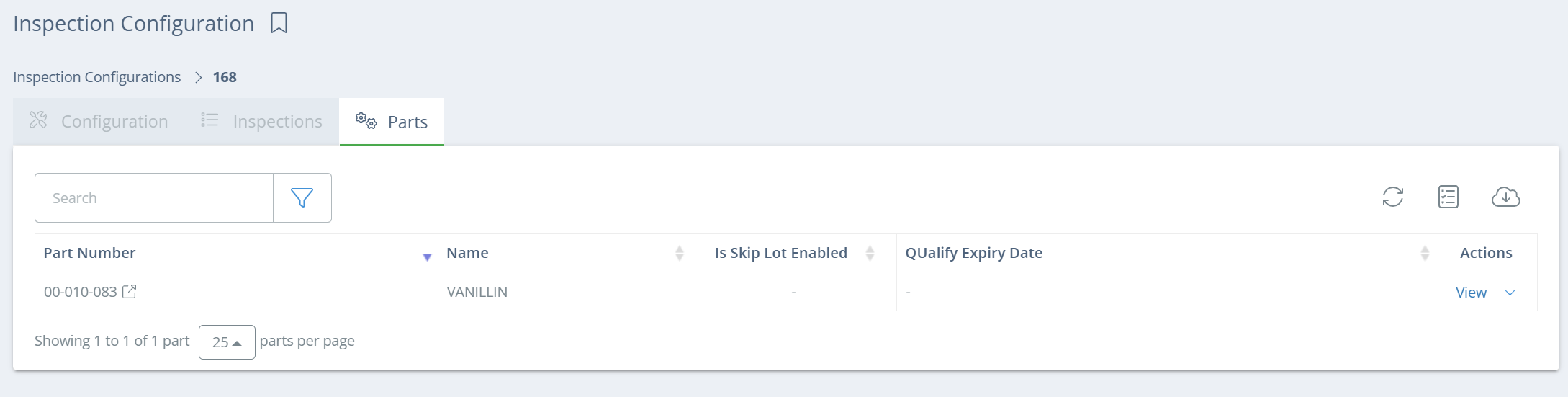

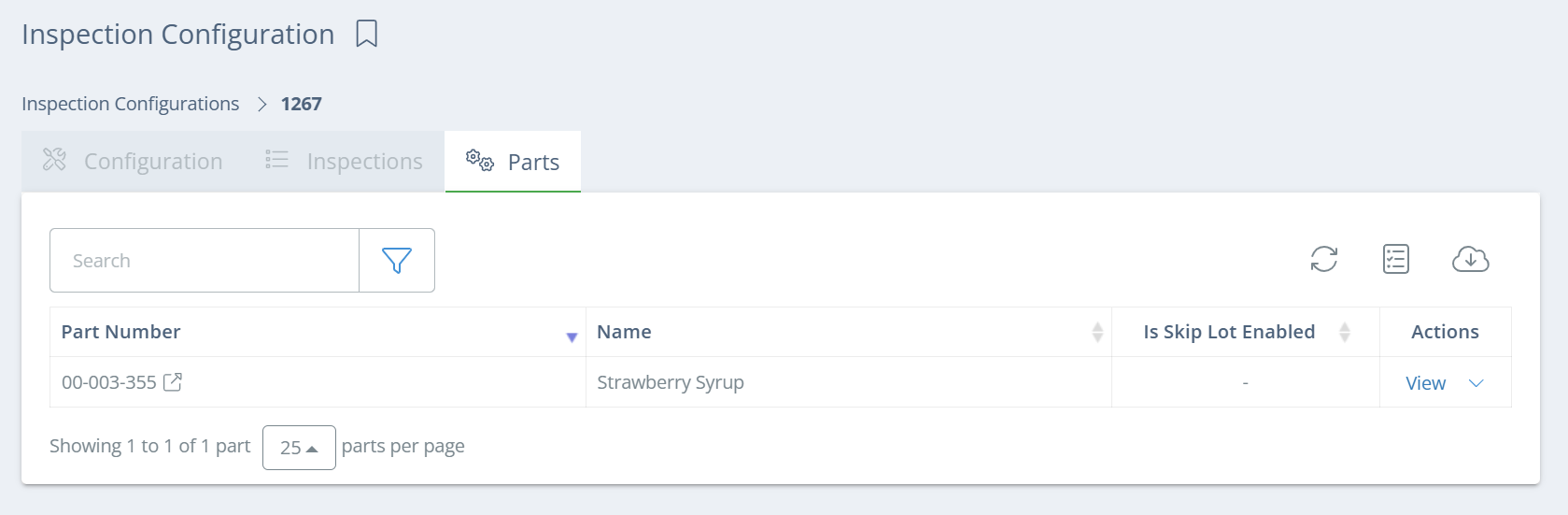

Open the "Parts" tab, and all parts that are using the template will be shown. Note that this does not include the parts that have copied from the template, only ones that are currently using the template.

Add an Inspection Configuration

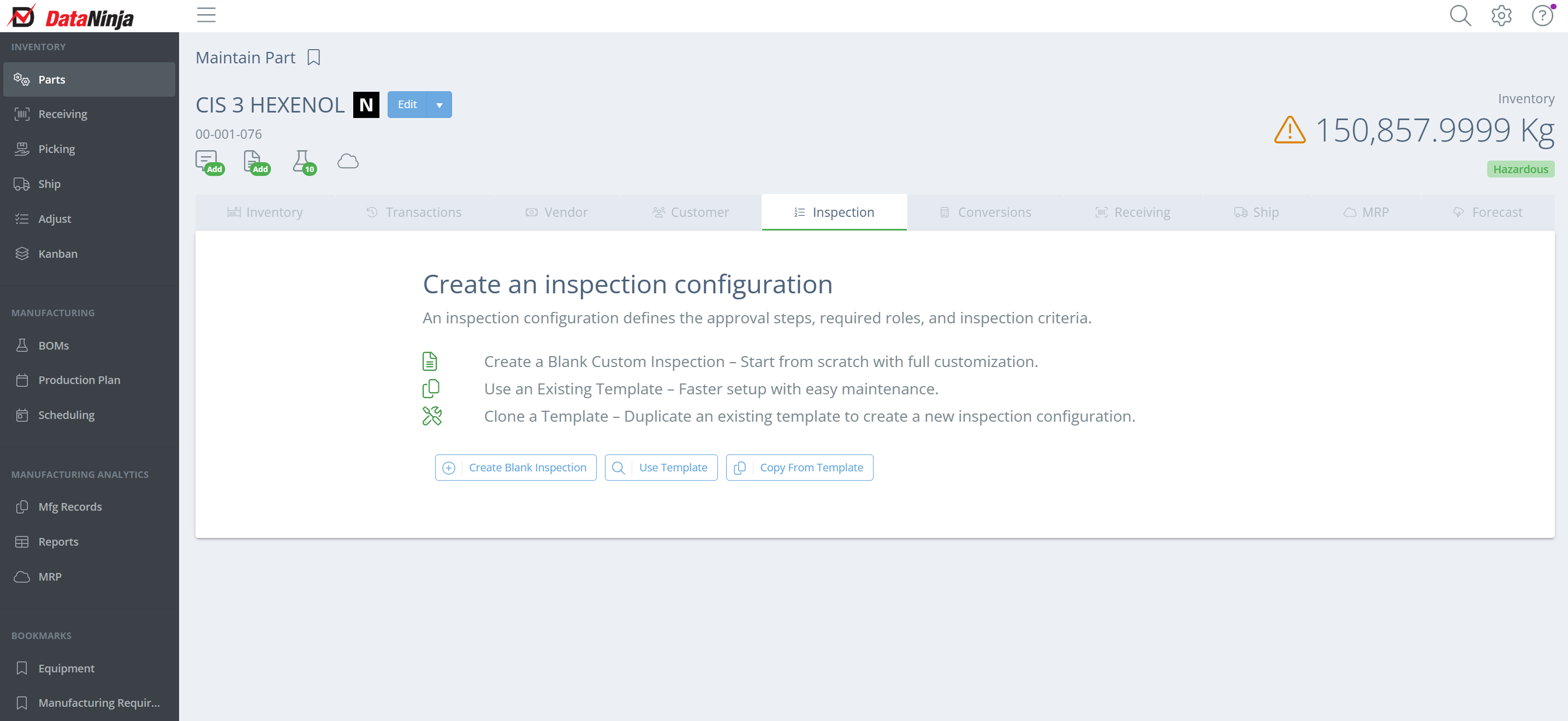

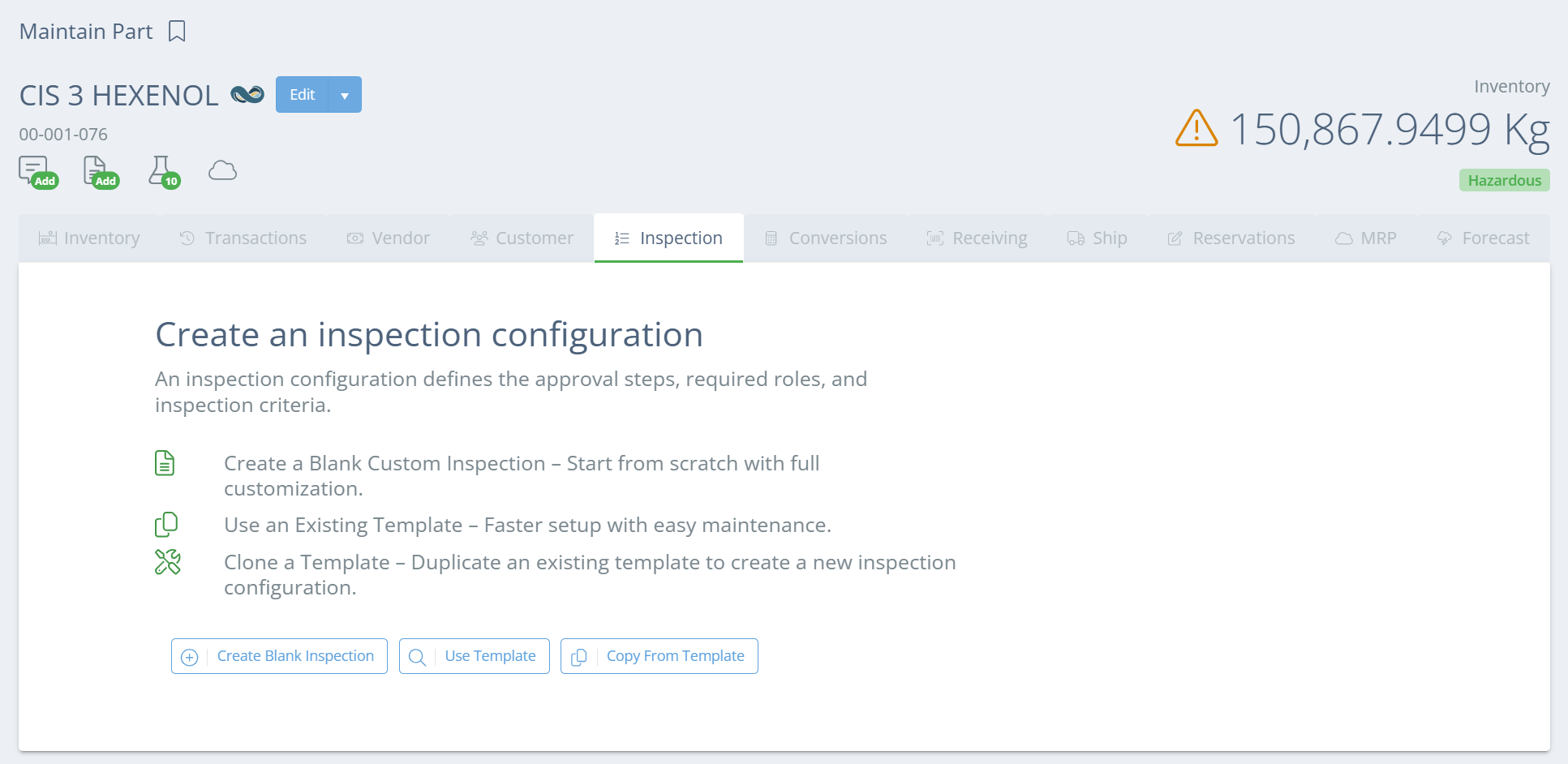

To add an incoming inspection on a part, go to the Parts page, search for the part and then click "View" to open the Maintain Part page. Click on the "Inspection" tab, and if you haven't set up an inspection on the part yet, you will see 3 options to get one added.

  1. Create Blank Inspection:
    1. Start from scratch- you will be required to fill in all of the information for the inspection.
  2. Use Template:
    1. If you already have an inspection template set up, you can apply it to the part but you will not be able to make any changes to the inspection on the part without adjusting/removing the template.
  3. Copy From Template:
    1. If you already have an inspection template set up, you can copy the approval steps and inspection criteria, and you will still be able to make changes to the inspection on the individual part without affecting the template.

📘

View Applied Inspection Template

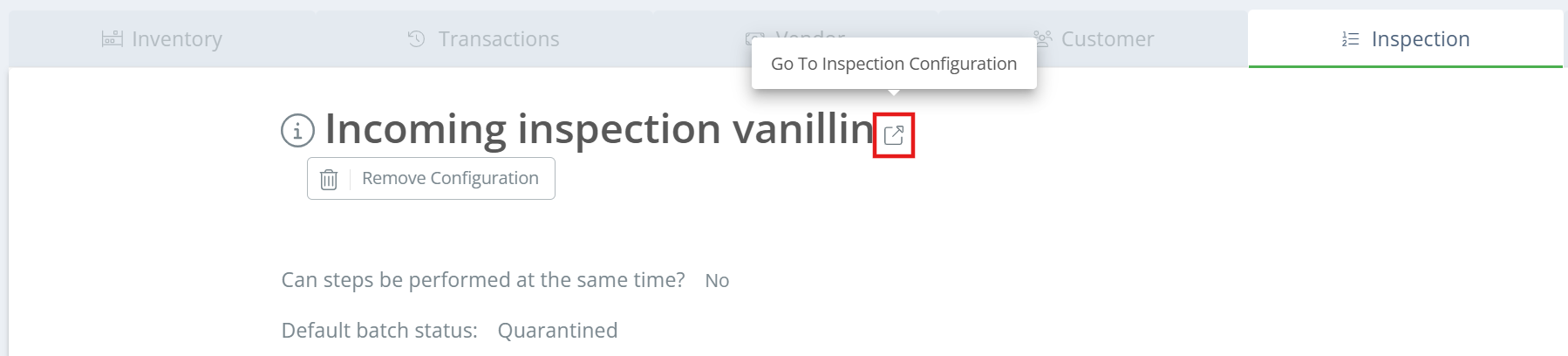

If there is already an inspection template applied to the part, click on the box with an arrow next to the inspection name to view the base template.

If the name of the Inspection shows as "Custom inspection configuration" that means that either the inspection was copied from a template, or the inspection was created from scratch.

👍

Change Inspection Template Name (New!)

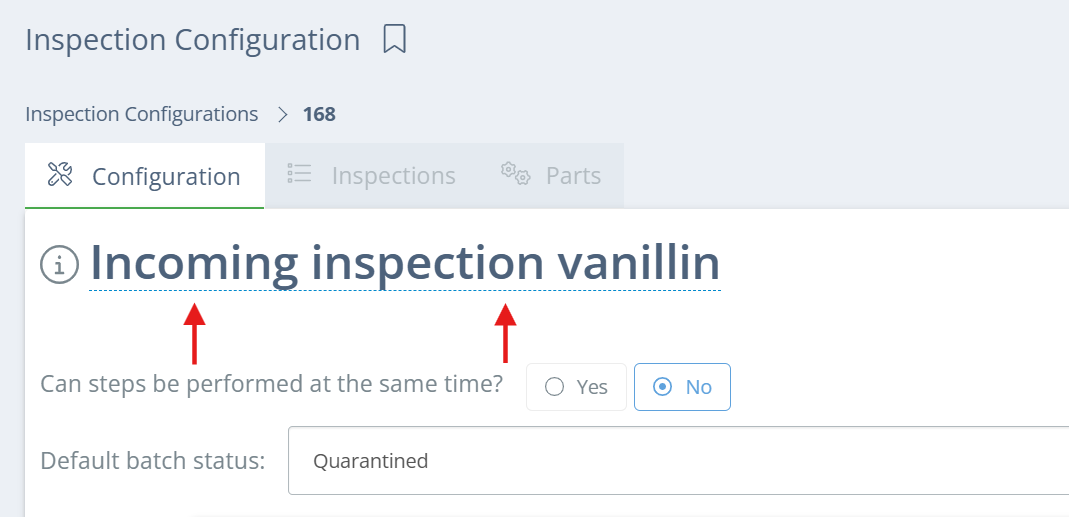

If you need to update the name of a template, go to the Inspection Configurations page and search for the template, or open a part with the relevant template applied and click on the box with an arrow, next to the inspection name. If there is a blue dotted line beneath the template name, you can click directly on the name and update it.

If the blue line is missing, or the name is "Custom inspection configuration", the inspection is not a template and the name cannot be changed. This feature is available beginning on version 4.20.263.488.

Bulk Apply Inspection Template

If you have an inspection template and need it applied (not copied) to multiple parts (more than would be reasonable to do manually), create an Excel sheet and list the part numbers and the relevant inspection template and send it to our Implementation team via chat.

Create a Blank Inspection Configuration

Each inspection on a part typically requires 3 things: approval steps, inspection criteria, and attributes. Below is an example of an approval step with 1 inspection criteria and 3 attributes.

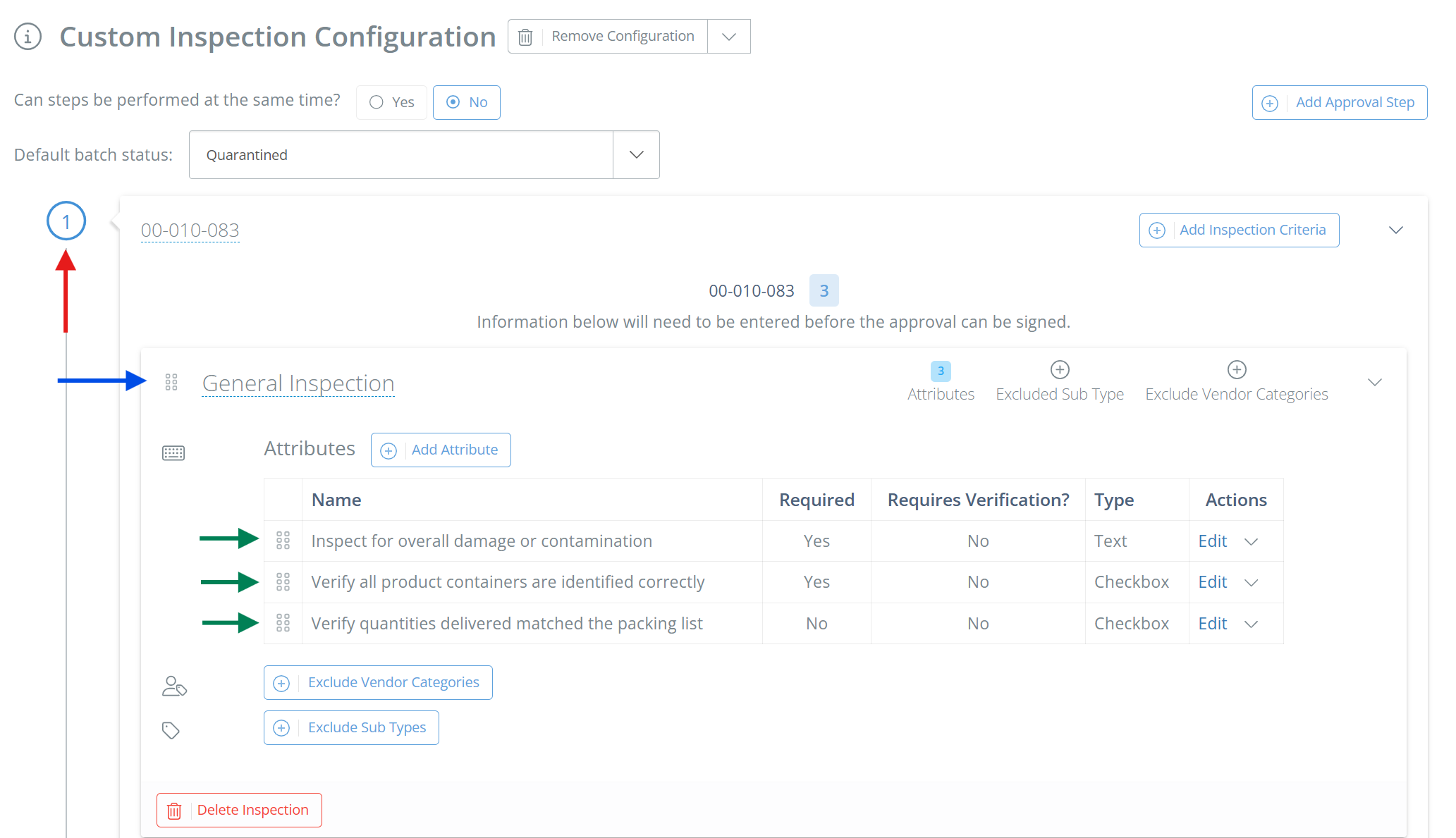

Approval step number (red), inspection criteria (blue), and attributes (green)

Approval step number (red), inspection criteria (blue), and attributes (green)

👍

Easy Edits

If you see a blue-dotted line beneath words or numbers, that means the field can be edited just by clicking on the information! For example, if you were to click on "General Inspection" in the screenshot above, you would be able to edit the inspection criteria name.

Add Approval Step(s)

When you start creating a blank inspection on a part, the first step is to create an approval step. In the sidebar that appears after clicking "Create Blank Inspection", set the name for the approval step, then specify which role(s) can complete the approval and hit "Save".

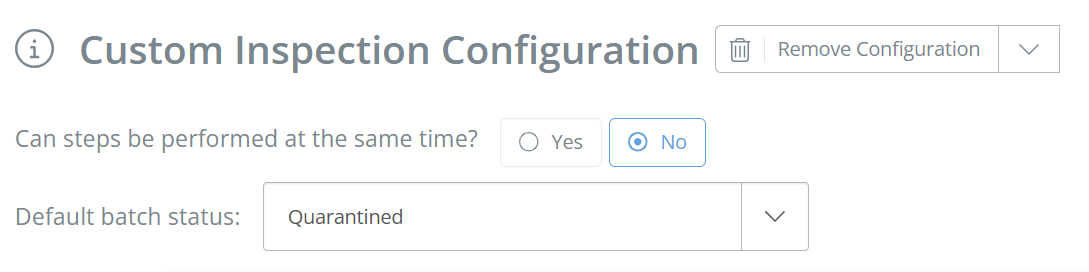

The sidebar will close and you should now see the approval step on the page. You should now be able to see the "Default batch status" field- DataNinja will default to "Quarantined". This is the batch status that received batches of this part will be set to upon receipt, so be sure to change it from "Quarantined" if needed.

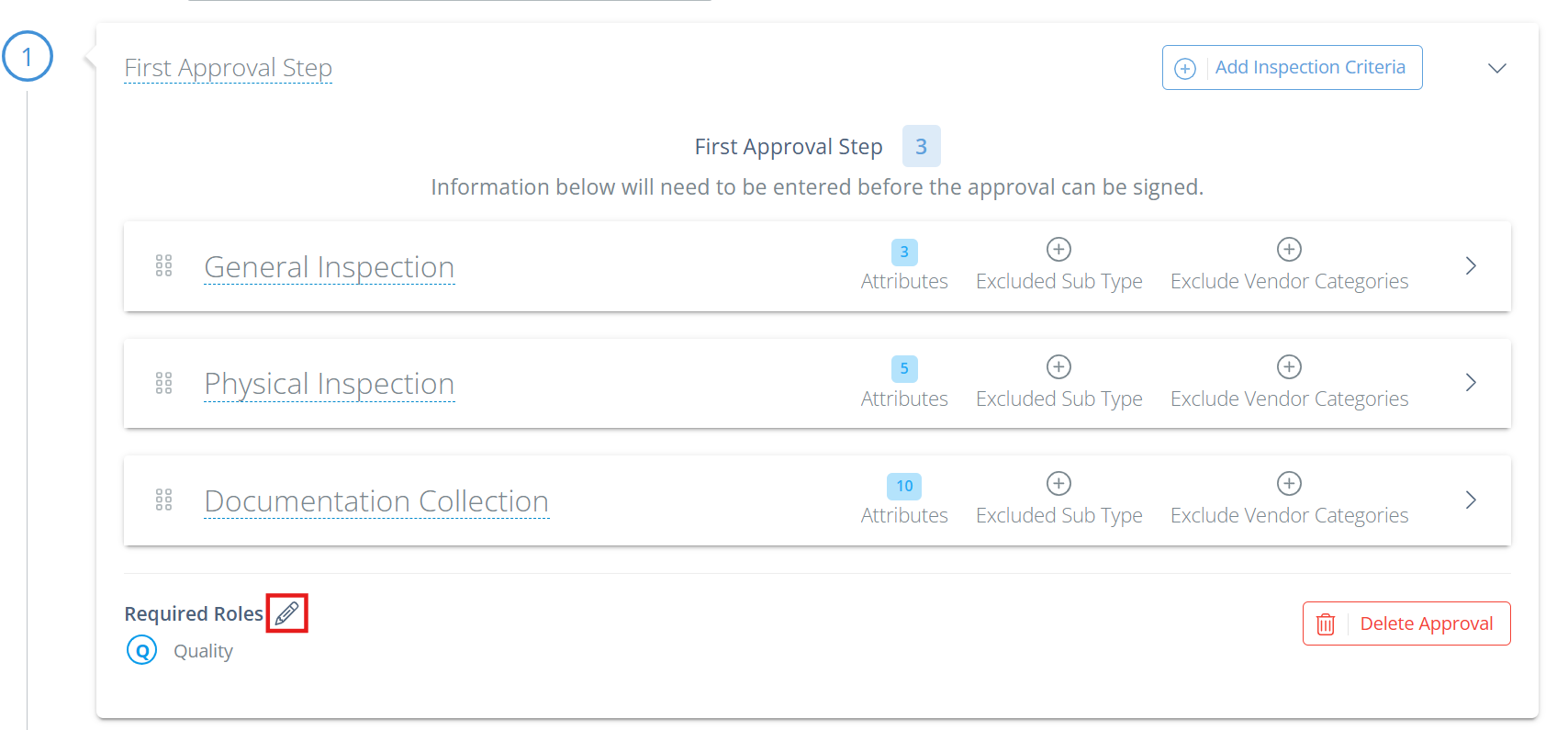

To edit the role(s) that need to sign off on a particular approval step, click the pencil icon next to "Required Roles".

📘

Approval Step Completion Order (New!)

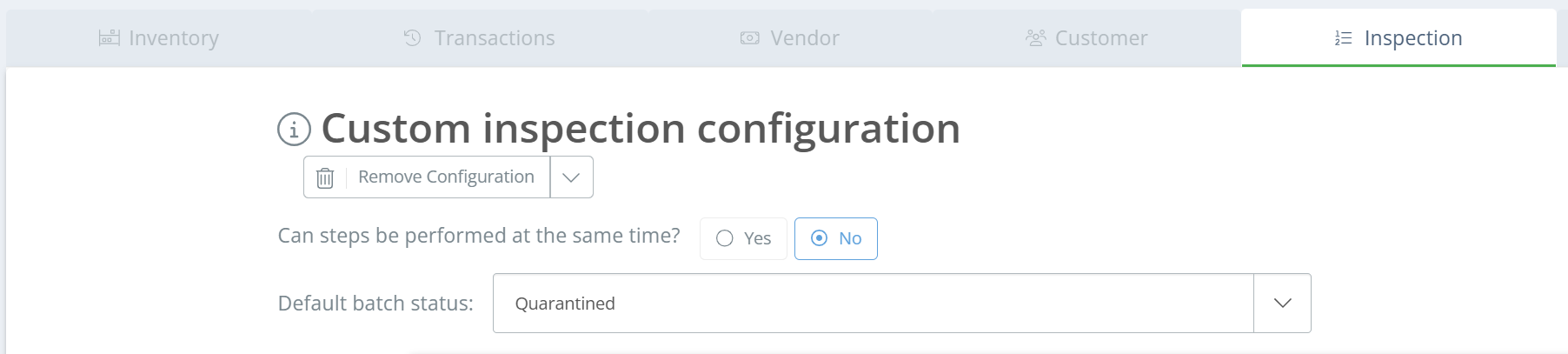

DataNinja has the capability to restrict the order in which approval steps are completed. Approval steps will show in different tabs when completing an inspection.

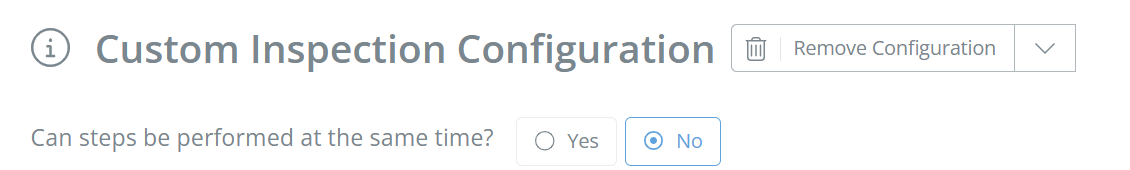

If "No" is marked next to "Can steps be performed at the same time?" then approval steps must be completed in sequential order. Until the first approval step is completed and signed, the next step will not show.

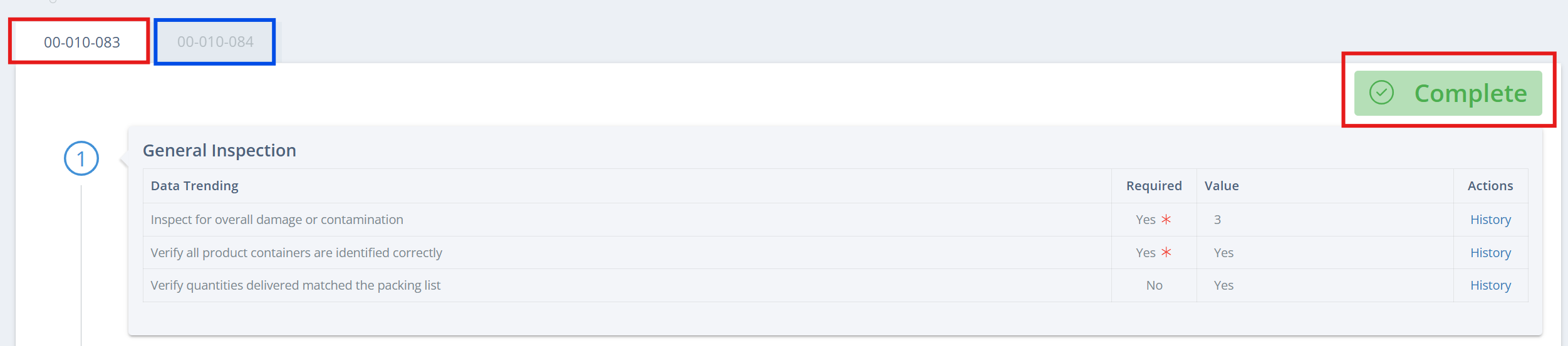

Approval step one completed (red), approval step two available to complete (blue)

Approval step one completed (red), approval step two available to complete (blue)

If "Yes" is selected, then any approval step can be updated/completed, regardless of sequential completion. Approval steps will still show in different tabs and require separate signatures, as pictured above.

Why Isn't There a Number Next to the Approval Step?

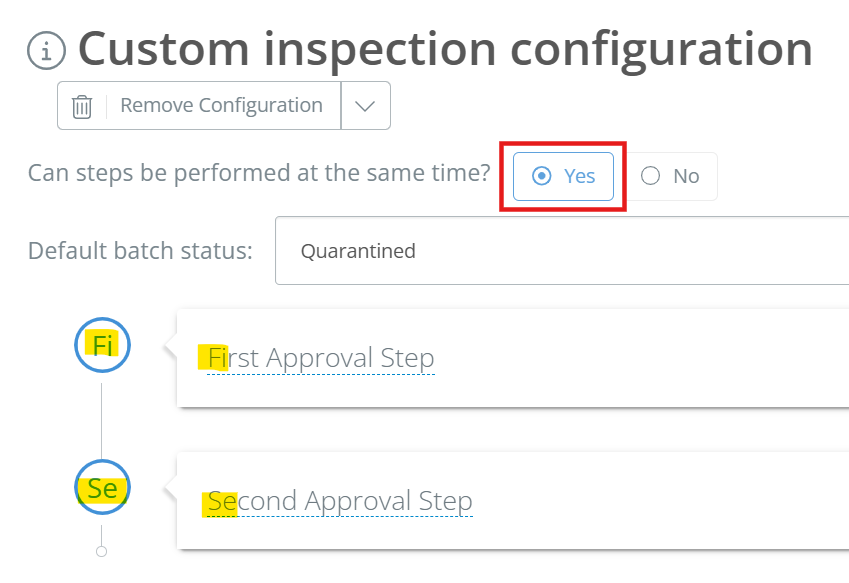

If you have allowed approval steps to be completed at the same time, DataNinja will pull the first 2 letters of the approval step name and put them into the blue circle to the left, as seen below.

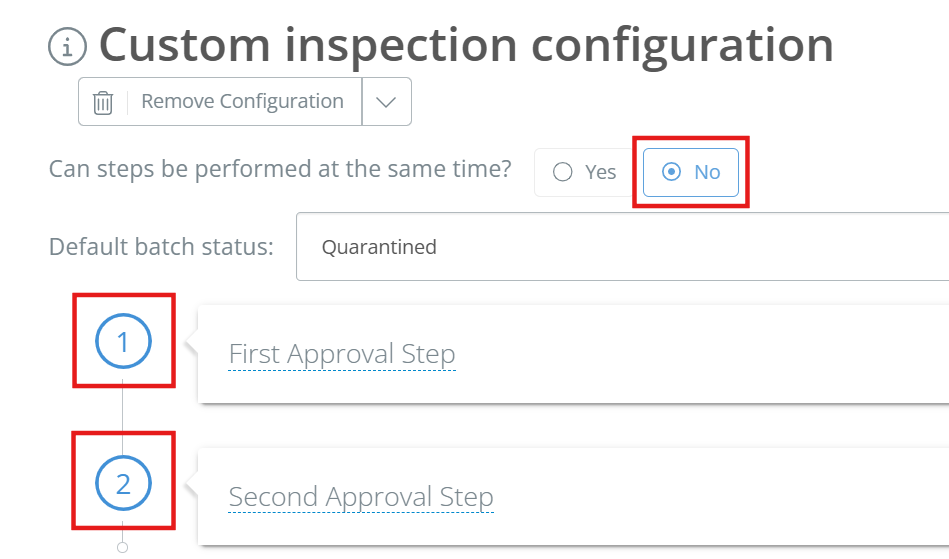

If you require sequential completion of the approval steps, sequential numbers (starting with 1) will show in the blue circles.

Note: this is only on the Inspections tab of a part. When actually completing the inspection, approval steps will be shown in tabs, with the tabs displaying the approval step name, as shown below.

Add Inspection Criteria

Click "Add Inspection Criteria" and enter the name for the criteria. The new inspection criteria should now show on the Inspections tab.

Notice that the inspection criteria doesn't have any attributes- this is what you will add next.

📘

Changing Inspection Criteria Order

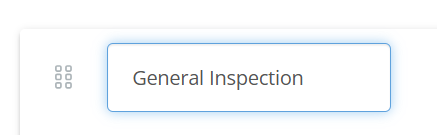

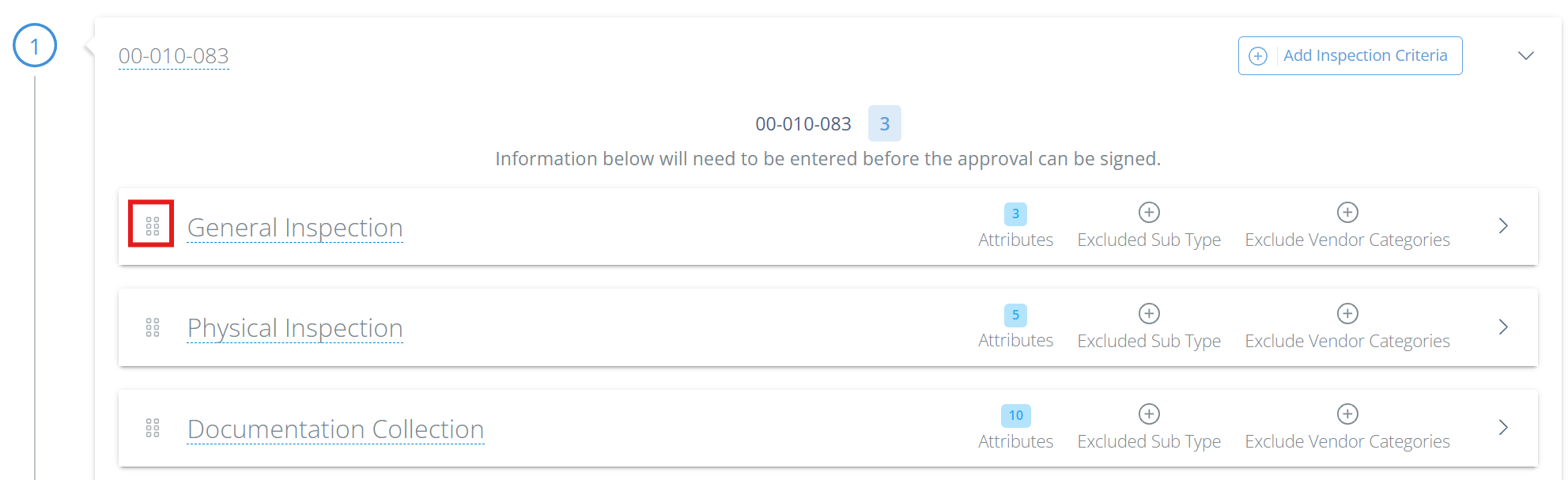

You will see 6 dots to the left of the criteria name- you can click and drag on these dots to change the order of the inspection criteria.

If you have multiple approval steps, you can also click and drag (not copy) criteria between approval steps.

Add Attributes

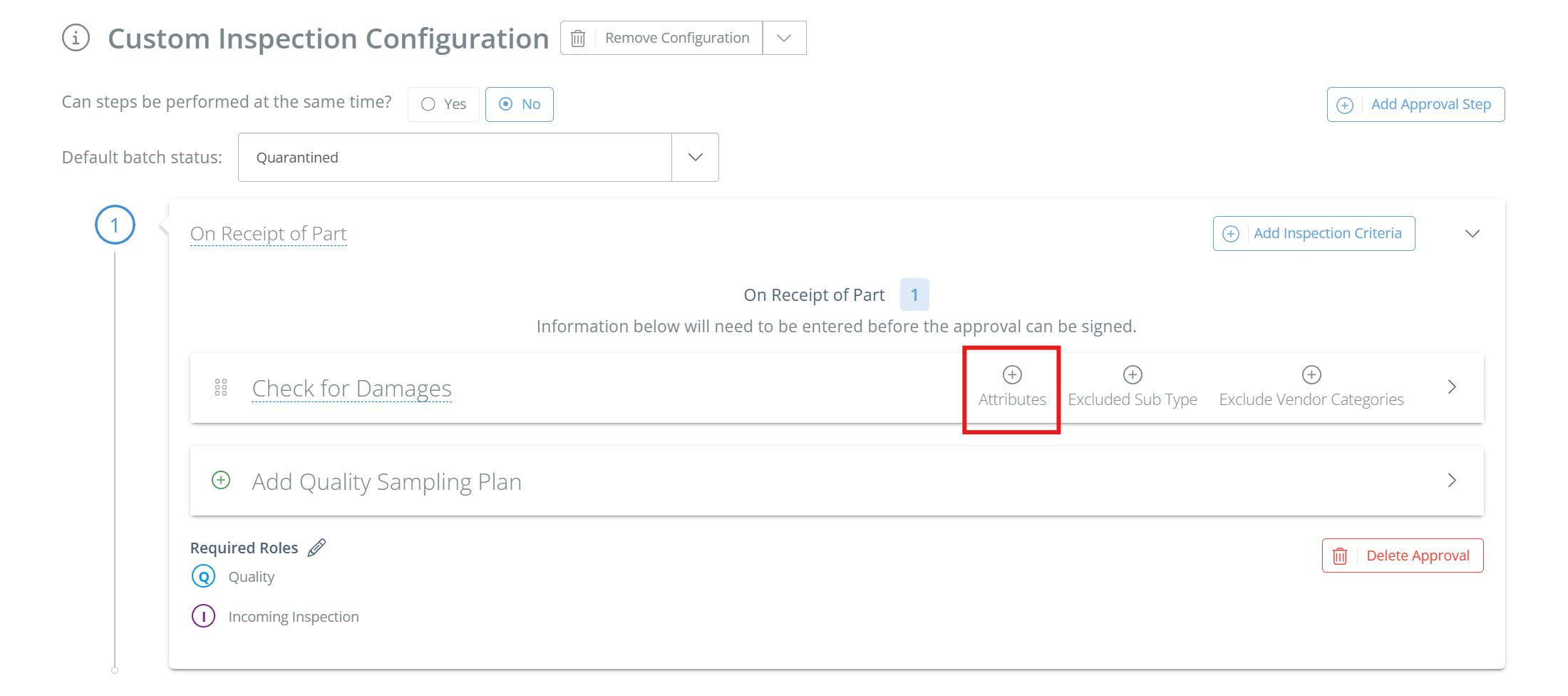

Click on the Attributes button (or the arrow on the far right) and the inspection criteria will expand. Click "Add Attribute" and a new sidebar will open- enter a name for the attribute, then select if the attribute is required, if it needs verification, and the type.

👍

Second Person Verification (New!)

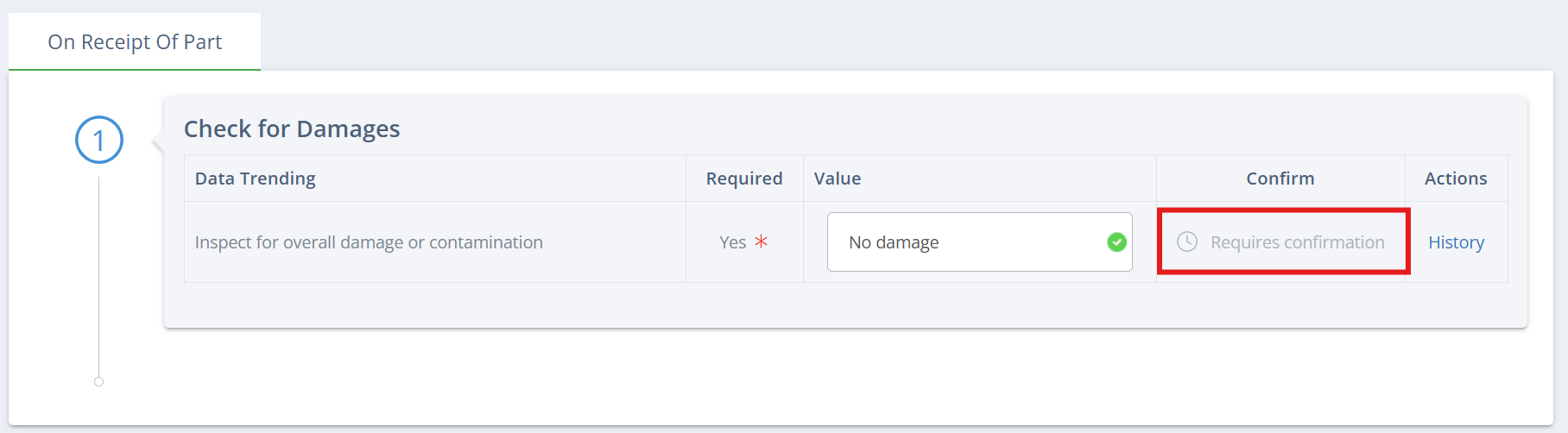

For each attribute on a Process Step, you can now require a second person to verify that the attribute was completed correctly. Just select "Yes" under "Requires Verification?" when setting up or editing the attribute. Be aware that this means that a second user with a different DataNinja login must hit "Confirm" on the attribute in order to complete it.

Types of Inspection Attributes

Attributes are specific actions/recorded actions needed to complete each inspection criteria.

Attribute TypeMonitorsAlerts If
Check BoxCompletionNot Checked Off OR Incorrect Choice
Date FieldDate EntryBlank OR Not Correct Format
FileUpload SuccessNo File/Image Uploaded
Number FieldNumber EntryBlank OR Outside Threshold
Select BoxChecked EntriesNo Boxes Marked OR Incorrect Choice(s)
Text FieldText EntryBlank
WeightWeight From Connected ScaleBlank OR Outside Threshold

📘

Changing Attribute Order

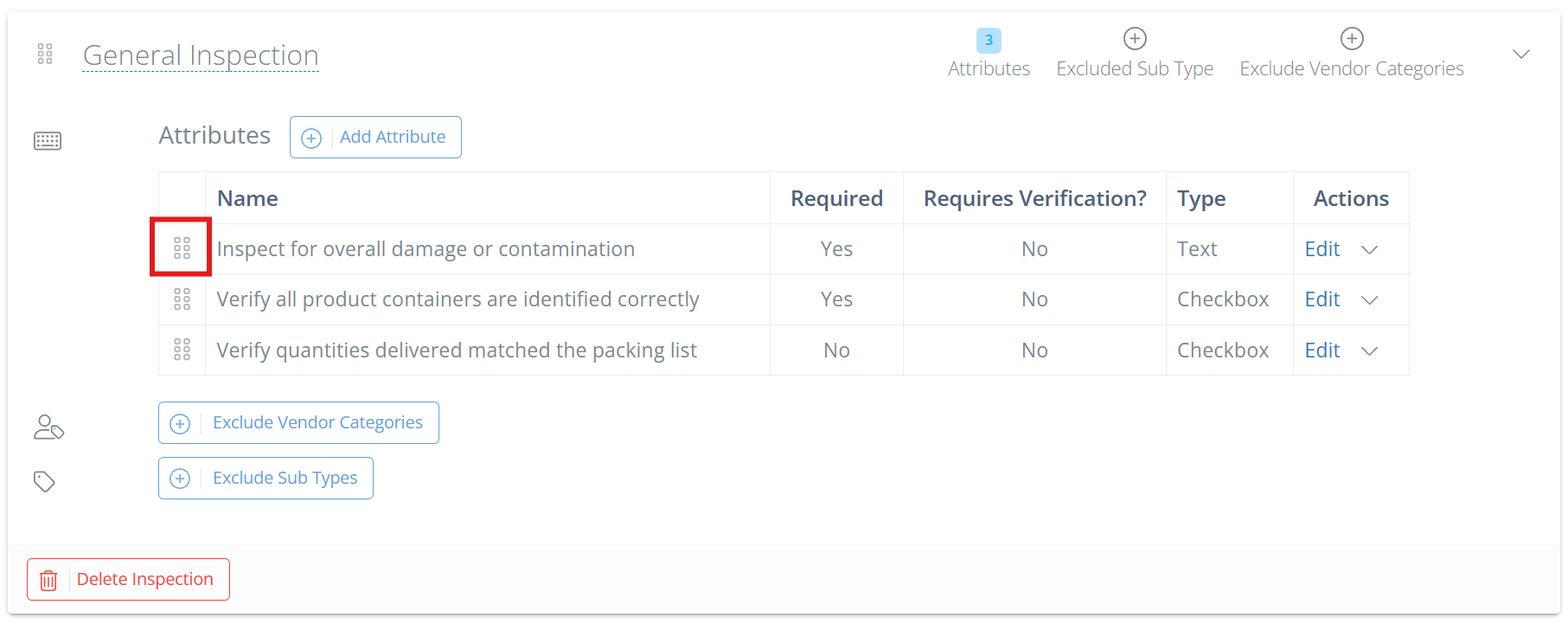

You will see 6 dots to the left of the attribute name- you can click and drag on these dots to change the order of attributes.

If you have multiple criteria on an approval step, you can click and drag attributes between criteria, so long as there is one or more attributes on the criteria the attribute is moving to. For example, in the image below, you wouldn't be able to move the "Inspect for overall damage or contamination" attribute to the "Check Temperature" criteria because "Check Temperature" does not have any attributes.

Exclusions (New!)

There may be cases in which you don't need to complete a particular incoming inspection criteria- DataNinja now allows you to exclude the criteria as a requirement under specific circumstances. Be aware that this does not remove the inspection as a whole (unless you mark all criteria to exclude a vendor category or sub type), only the specific criteria of an approval step.

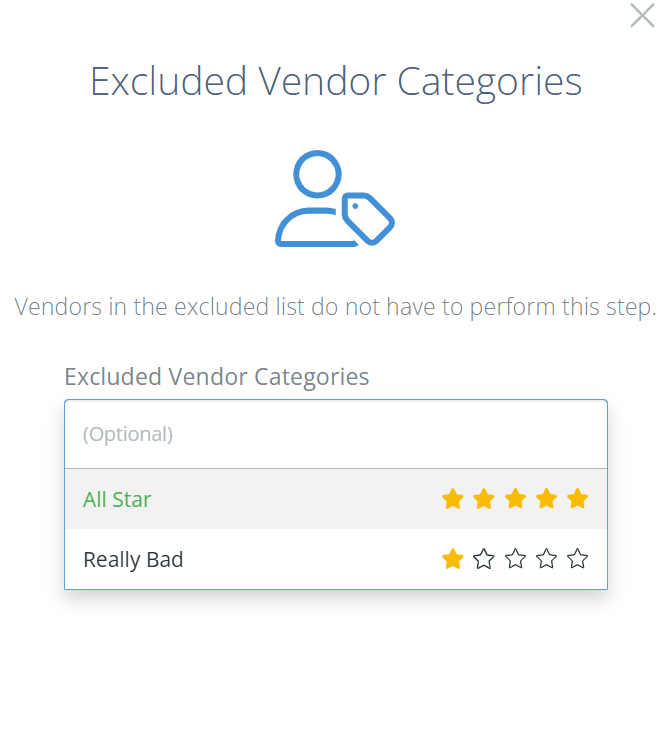

  1. Vendor Categories

    1. Vendor categories are based on rating. If you do not have ratings on your vendors, you won't see any vendor categories to exclude.

    Notes: To add vendor categories, click on the gear icon in the top right, go to "All Lists" and then open the Vendors page. Edit a vendor and add a category, or click "Create new category" after clicking in the category field.

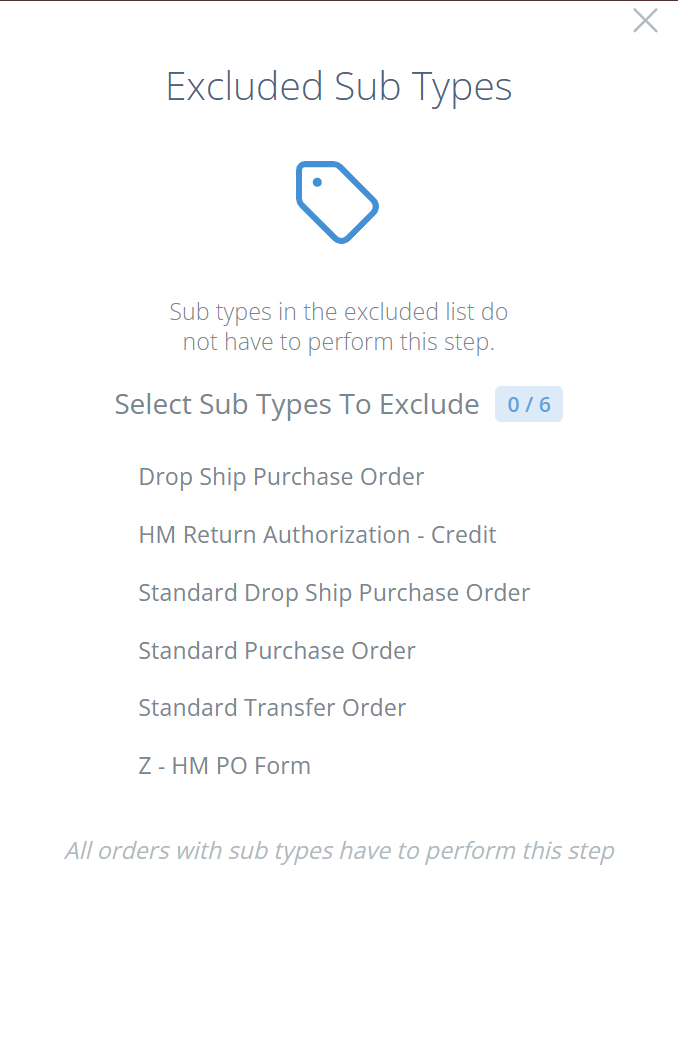

  2. Sub Types

    1. Sub types are types of orders that may require an incoming inspection to be completed. If you want to exclude a type of order from requiring the inspection, click on "Exclude Sub Types" and then select the ones to exclude. Any sub types not selected will still complete the inspection.

    Note: The sub types listed on your site may vary from the picture below, depending on your NetSuite settings.

Add Quality Sampling Plan (optional)

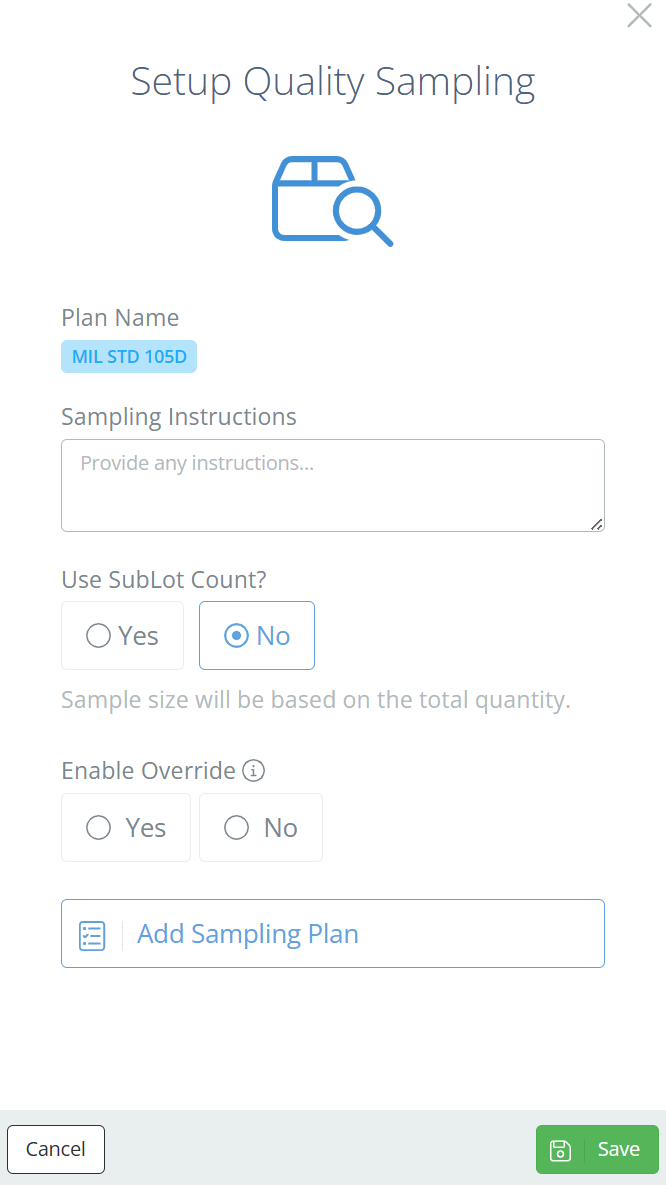

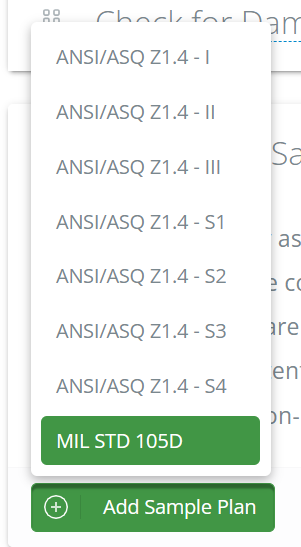

If desired, you can set up a sampling to be completed as part of the incoming inspection. Just click "Add Quality Sample Plan", then "Add Sample Plan". Select the sampling plan, and a sidebar will appear on the right side of the screen.

Provide any specific instructions for the sampling, and choose whether to use SubLot count or not. If you select "Yes", the sampling will be based on the number of labels printed during receiving. If you select "No", then the sample size will be based on the total quantity received.

You can choose to enable override on the sampling (allows users with appropriate permissions to override AQL requirements), and then will need to add a sampling plan. If you don't have one set up, see our Sampling Plan page for instructions on how to do so.

Delete an Inspection Configuration

If you want to completely remove an inspection configuration from a part, just hit "Remove Configuration". This will delete all inspection information from the part; if the part is using a template, the template will not be affected.

Delete an Approval Step

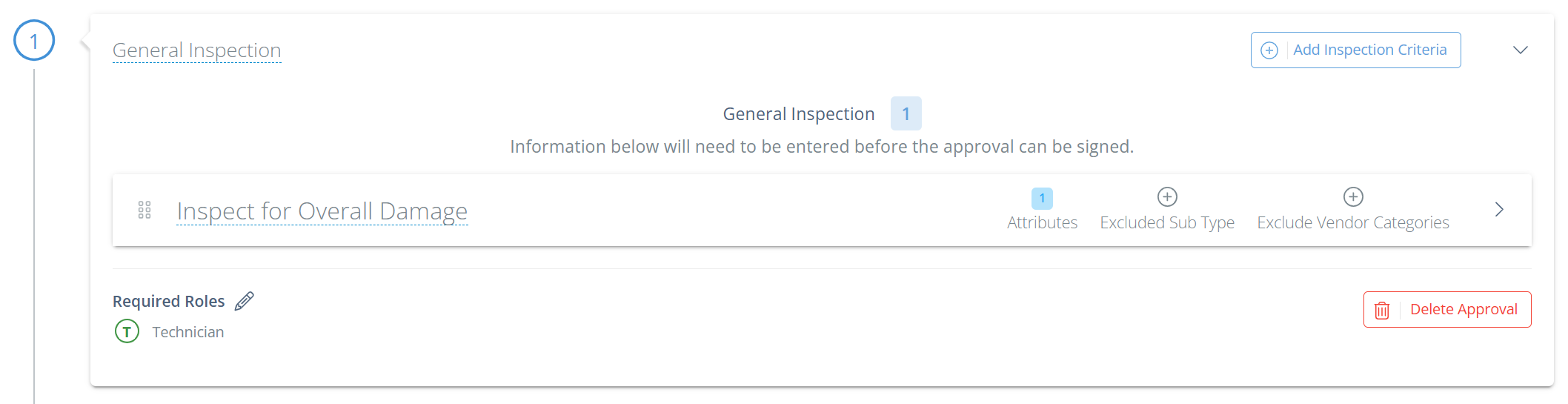

If you want to delete an approval step, expand the approval step by clicking the arrow on the far right, then click "Delete Approval". All inspection criteria and attributes associated with the attribute step will be deleted as well.

Delete an Inspection Criteria

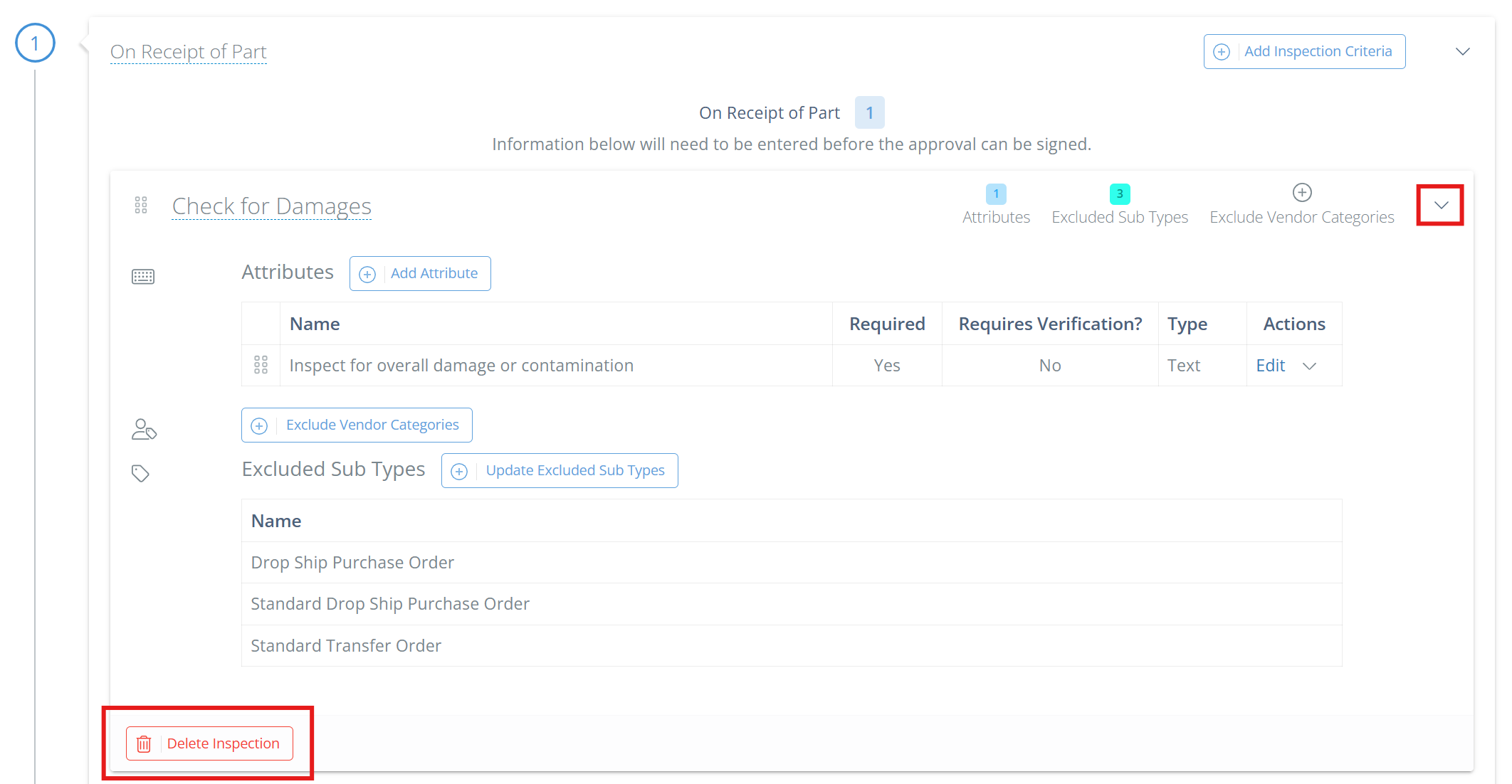

If you want to delete an inspection criteria from an approval step, expand the inspection criteria by clicking the arrow on the far right, then click "Delete Inspection". Associated attributes will be removed, but the approval step will remain.

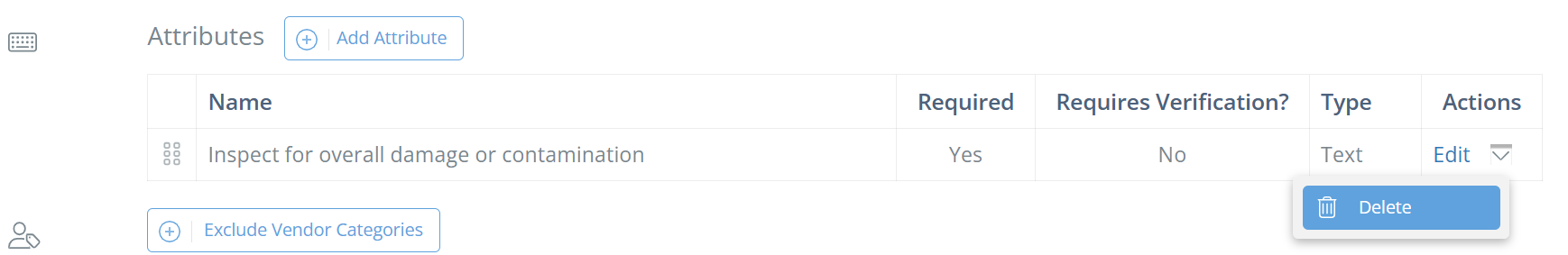

Delete an Attribute

If you want to delete an attribute from an inspection criteria, click the dropdown arrow in the "Actions" column and select "Delete". The associated inspection criteria will not be deleted.

Electronic Quality Inspection Workflow

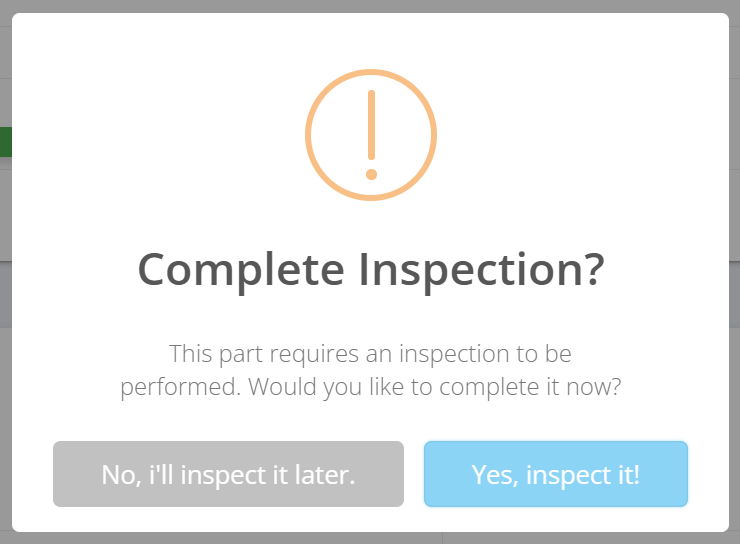

When receiving a part with a required inspection, the operator will see a notification to either complete the inspection immediately, or do it later. This notification will appear after going through the receiving process, as the barcodes are printing.

473

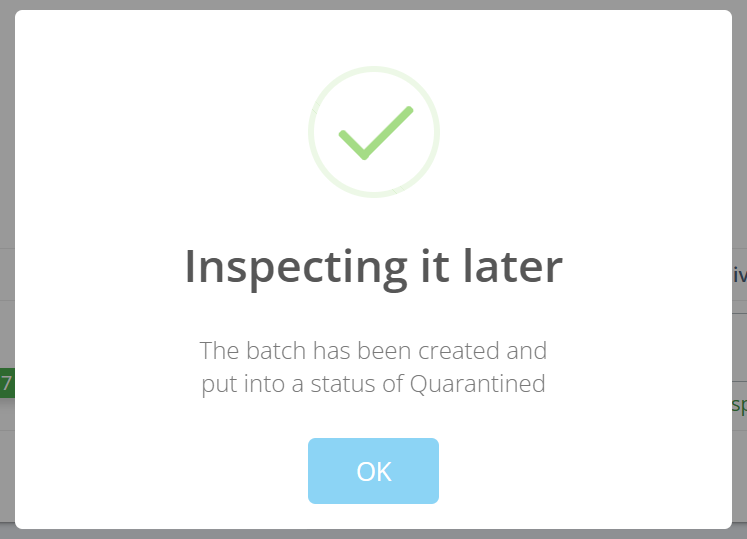

If the operator is authorized to complete the inspection, they can inspect the material immediately, or inspect later. By clicking Inspect Later the inspection approval will be routed automatically to the Approvals To Sign dashboard, visible on the DataNinja homepage for authorized users. Just click the DataNinja logo in the top left to access the homepage.

471

Ex. Part received has a default batch status of "Quarantined"

Completing an Inspection

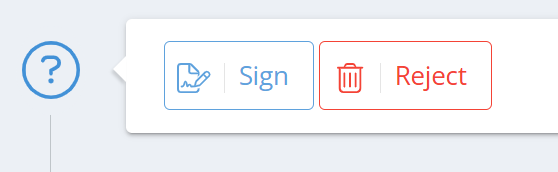

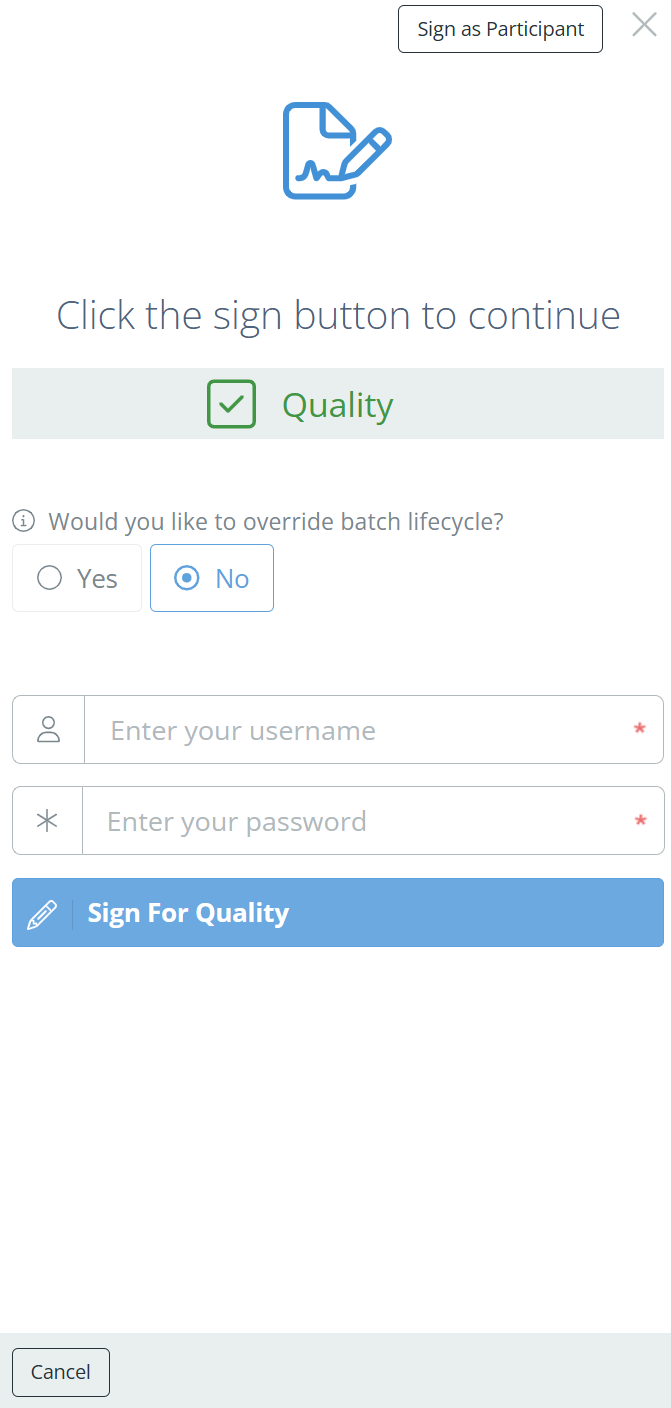

Open and complete an inspection by entering data for each of the inspection attributes. When complete, click "Sign" and enter your DataNinja login information to release the material for operational use.

👍

Nice to Know

When completing inspections on a tablet or mobile device, tap Attached Files to open the camera and link a picture to the material inspection.
